Features and characteristics:
1. Monitoring device is added upon executing unit
Counting executing unit is monitored during whole processing
Once abnormality happen machine will automatically stop and alarm immediately to ensure the counting accuracy.
Illustration: cylinder + monitoring page
2. Intelligent CCD counting system:
Automatic light fill-in adjustment function
Strong ability of anti-dust ensuring equipment counting accuracy even for the uncoated tablet with larger dust
Real-time monitoring for small & overlap tablet and reject timely
Illustration:
3. Special design of filling hopper:
The designed hopper with vibration function ensures smooth feeding of large tablets, avoid bottle mouth blockage to improve filling speed
Hopper covers bottle mouth tightly prevent small tablet from dropping and missing

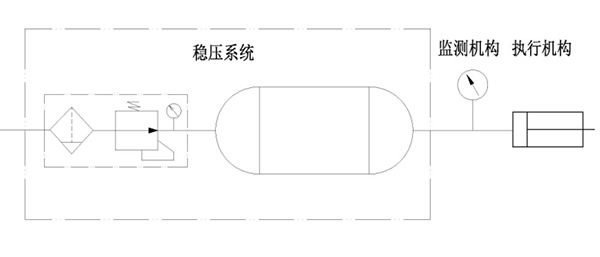

4. Gas storage and pressure stabilizing device

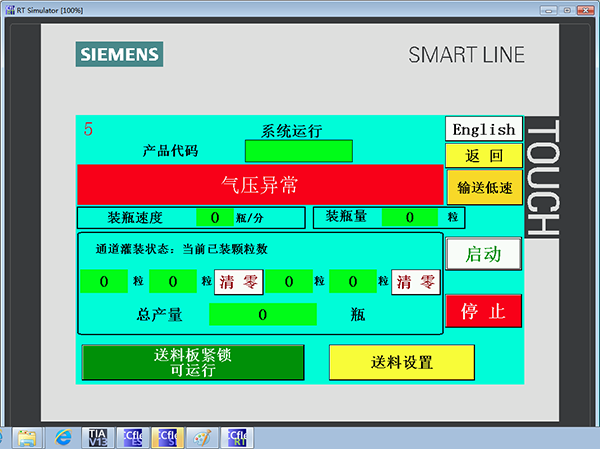

Real-time pressure monitoring, machine will automatically alarm for over high or too low air pressure
Ensure the reliability and stability of pneumatic components
+触摸屏截屏 touch screen shot

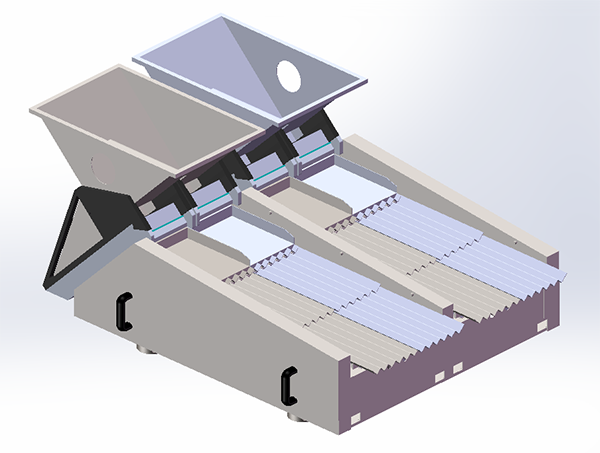

5. Constant material feeding mechanism
Material constant feeding mechanism avoid uneven delivery caused by material quantity in the storage bin
Avoid material blocked at discharge port of storage bin
Ensure material feeding continuity and stability
3-stage vibration feeding device equipped with intelligent control system, which can monitor the vibration real-time station and automatically adjust the feeding speed to expected optimal status
Illustration:

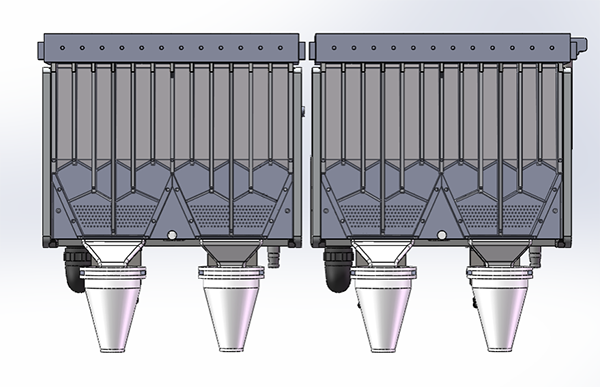

Multi hoppers filling together
Multi hoppers execute the filling action together
Each filling channel can flexibly adopts multi-layer intermediate gate, divide into left and right branch, which can greatly increase the pre-counted bottles number
Reduce the filling waiting-time to increase filling speed
Illustration:
Safety alarm device:

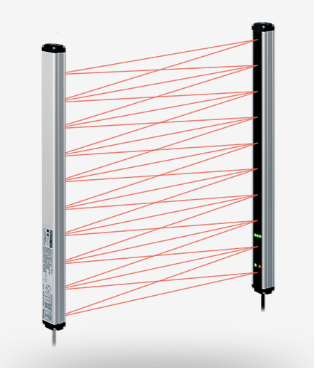

storage bin equipped alarm device to detect material level, machine equipped detection sensor for bottle shortage and blocking
3-color alarm light with intelligent voice and visual warning function is helpful to optimize personnel allocation and improve work efficiency
Safety door interlocking shutdown alarm device to ensure the operators personal safety
Simple operation, faster to change mold

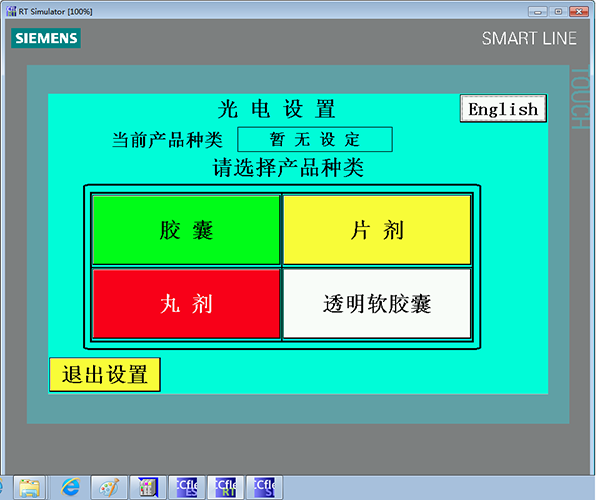

Different control modes designed for different medicines type, friendly human-computer interface.
Electric lifting function brings easy and quick mould changing
Illustration:

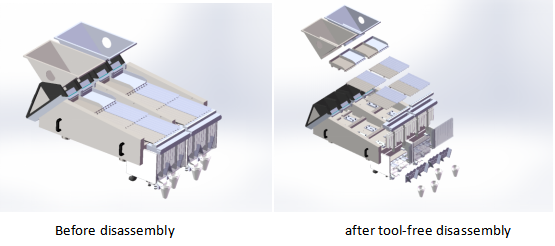

Easy maintenance and cleaning
the parts in contact with medicine are tool-free design , easy to disassemble and clean
illustration:three-dimensional explosion
Enjoy the Internet convenience in internet age
Ethernet data interface can be optioned
Internet access and database backup, etc
Remote network maintenance can be realized
Make the most use of the Internet
Technical parameters:
Type | Counting channels | Suitable to bottle size | Capacity (round tablet/pcs/min) |
PAY4000Ⅰ | 12 | 20-300ml | 7500 |
PAY4000Ⅱ | 16 | 20-300ml | 10000 |
PAY4000Ⅲ | 24 | 20-300ml | 15000 |
PAY4000Ⅳ | 32 | 20-300ml | 20000 |
