Features and characteristics:
Function:
Machine is suitable for powder bottle filling such as medical powder, glucose, milk powder, solid beverage, coffee, sugar, and other condiments as well as dyes and other chemical raw materials
Material is fed with certain filling quantity through spiral rod, measurement method is weighing feedback & tracking plus spiral rotation filling. machine can be used for ultra-fine powder and large grained material by exchanging its spiral rod accessory.
3-level authorization management meeting the equipment operation management mechanism.
Parameter recipe can be stored and invoked.
Machine has the function of electronic recording, electronic signature, audit trailing meeting FDA21 CFR PART11 requirements.
Automatic material feeding system can be optioned
Features:
Special dust collection device installed at the filling mouth realizing the high-precision filling without dust flying to protect the working environment and operator health.
machine has weight calibration device ensure the accurate measurement,
With perfect anti-interference control system, it can resist the interference of electromagnetic interference (EMI), radio frequency interference (RFI), electromagnetic pulse (EMP) and other electronic systems
Adopt international famous brand PLC and touch screen control system
Adopt German made high precision weighing sensor
Adopt antistatic design to ensure the equipment filling precision
Machine operation with low vibration and noise
Machine equipped with material shortage alarm device, and bottle shortage & blocking detection device
Quality risk control:
Special dust collection device installed at the filling mouth realizing the high-precision filling without dust flying to protect the working environment and operator health.
equipment can display real-time running time, product name, batch number, operator, equipment running parameters, can automatically count the output of qualified and unqualified products and a series of running data, data can be stored, uploaded, or external printer printing.
The surface in contact with the material is designed without screws and foreign matter falling off to prevent the risk of screws or other foreign matter falling into the powder
All materials in contact with powder are in accordance with FDA and GMP standards to avoid powder pollution possibility

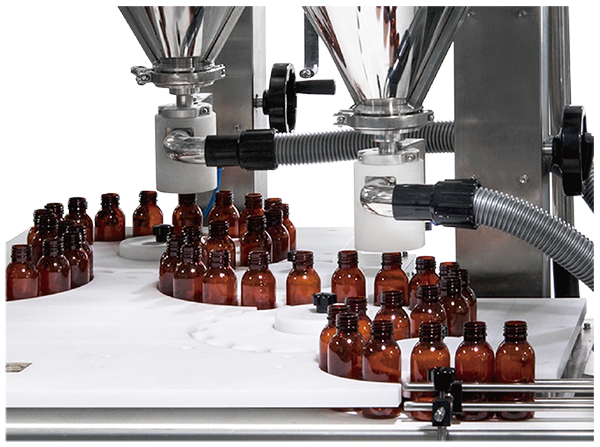

Illustration:
Safety alarm device:
3-color alarm light with intelligent voice and visual warning function, which is helpful to optimize personnel allocation and improve work efficiency
Safety door interlocking shutdown alarm device to ensure the operators personal safety
Material storage bin equipped alarm device detecting material quantity, machine has detection unit for bottle shortage and blocking
Simple operation, faster to change mold
user-friendly man-machine interface is easy to understand
Adopt modularization and tool-free design, simple and quick to change specifications by changing the corresponding mold,
Administration personal can invoke the stored recipes and quickly switch between different products
Easy maintenance and cleaning
convenient to disassemble and clean the equipment, tool-free design, convenient to install again by positioning design.
equipment surface is made of stainless steel and non-toxic and chemically stable food grade non-metallic material, easy to clean and has no dead angle.
Enjoy the Internet convenience in internet age
can be optioned with Ethernet data interface and OPC mechanism, convenient to access SCADA/MES system
Internet access and backup database, etc
Remote network maintenance can be realized
Make the most use of the Internet
Partial customer list:
Illustration:
Technical parameters:
Type | Suitable to bottle size | Packing weight | Packing precision | Capacity |
PAF3000III | 20~300 ml | 5~500g (exchange the spiral rod and accessory) | A. 10g<packing weight≤30g: ±0.6g | 60~100瓶/分 (depends on packing volume and bottle mouth) |
B. 30g< packing weight ≤100g: ±1g | ||||
C. 100g< packing weight ≤500g: ±1%FS | ||||
PAF3000II | 20~300 ml
| 5~500g ( exchange the spiral rod and accessory ) | A. 10g< packing weight ≤30g: ±0.6g | 30~70瓶/分 ( depends on packing volume and bottle mouth ) |
B. 30g< packing weight ≤100g: ±1g | ||||
C. 100g< packing weight ≤500g: ±1%FS | ||||
PAF3000I | 20~300 ml | 5~500g ( exchange the spiral rod and accessory ) | A. 10g< packing weight ≤30g: ±0.6g | 15~40瓶/分 ( depends on packing volume and bottle mouth ) |
B. 30g< packing weight ≤100g: ±1g | ||||
C. 100g< packing weight ≤500g: ±1%FS |
