Features and characteristics:
Function:
Machine is suitable for pill bottling requirements in Chinese herb industry and various of traditional Chinese medicine hospital, it has two measure and filling methods of counting and weighing, machine has filling precision confirming and detecting function, unqualified products can be rejected automatically
Adopt 2 – level material feeding mechanism ensure material delivered evenly with high filling precision
3-level authorization management, meeting the equipment operation management mechanism.
Machine can automatic statistic the qualification and un-qualification rate, and separately count the percentage of overweight and ultra-light weight
Parameter recipe can be stored and invoked function.
Machine has the function of electronic recording, electronic signature, audit trailing meeting FDA21 CFR PART11 requirements.
Machine equipped with automatic detection device for bottle shortage & blocking

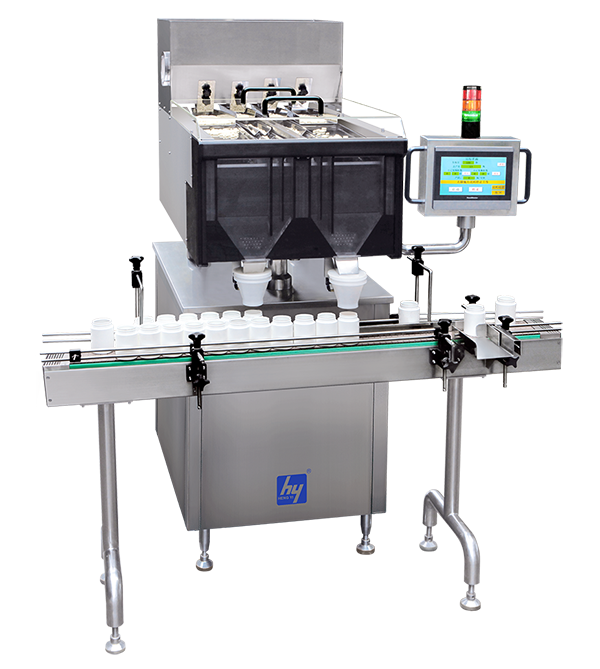

Pill weighing & filling machine
Pill visual counting & filling machine
Features and characteristics:
Function:
Machine is suitable for pill bottling requirements in Chinese herb industry and various of traditional Chinese medicine hospital, it has two measure and filling methods of counting and weighing, machine has filling precision confirming and detecting function, unqualified products can be rejected automatically
Adopt 2 – level material feeding mechanism ensure material delivered evenly with high filling precision
3-level authorization management, meeting the equipment operation management mechanism.
Machine can automatic statistic the qualification and un-qualification rate, and separately count the percentage of overweight and ultra-light weight
Parameter recipe can be stored and invoked function.
Machine has the function of electronic recording, electronic signature, audit trailing meeting FDA21 CFR PART11 requirements.
Machine equipped with automatic detection device for bottle shortage & blocking
Illustration:
Features:
Machine uses German imported high precision weighing sensor, accurate measurement with high filling precision ±0.2g
With zero position automatic tracking and automatic calibrating function
Automatically setting the upper and lower limitation value, ultra-weight and over-weight can be automatically rejected
Comparing to traditional volumetric measuring method the new measurement method can greatly save material and improve enterprise benefit
The visual counting machine adopts imported high resolution visual detection system to ensure its high counting precision
Compact design with small volume, fast speed improve the space to capacity ratio, greatly reduce the GMP operation cost
With perfect anti-interference control system, it can resist the interference of electromagnetic interference (EMI), radio frequency interference (RFI), electromagnetic pulse (EMP) and other electronic systems
Adopt international famous brand PLC and touch screen control system
Adopt antistatic design to ensure the equipment filling precision
Machine operation with low vibration and noise
Quality risk control:
2 – level material feeding mechanism ensure material delivered evenly with high filling precision, no damage to medicine in process
equipment can display real-time running time, product name, batch number, operator, equipment running parameters, can automatically count the output of qualified and unqualified products and a series of running data, data can be stored, uploaded, or external printer printing.
rejection mechanism has a real-time monitoring and confirmation system to ensure the unqualified products are accurately rejected.
The surface in contact with the material is designed without screws and foreign matter falling off to prevent the risk of screws or other foreign matter falling into medicine. All materials in contact with powder are in accordance with FDA and GMP standards to avoid pill pollution possibility
Illustration:
Safety alarm device:
3-color alarm light with intelligent voice and visual warning function, which is helpful to optimize personnel allocation and improve work efficiency
Safety door interlocking shutdown alarm device to ensure the operators personal safety
Machine equipped with material shortage alarm device, and bottle shortage & blocking detection device
Simple operation, faster to change mold
user-friendly man-machine interface is easy to understand
modularization and tool-free design, simple and quick to exchange specifications by changing the corresponding mold,
Administration personal can invoke the stored recipes and quickly switch between different products
Easy maintenance and cleaning
convenient to disassemble and clean the equipment, tool-free, convenient to install again by positioning design.
Enjoy the Internet convenience in internet age
Can option Ethernet data interface and OPC mechanism, convenient to access SCADA/MES system
Internet access and backup database, etc
Remote network maintenance can be realized
Make the most use of the Internet
Partial customer list:
Technical parameters:
Pill weighing & filling machine
Type | Capacity (bottle/min) | Filling | Filling precision |
PAC3000Ⅱ | 40~80 | 5~100g | ±0.2g~±0.5g |
Pilling visual counting & filling machine
Type | Capacity (bottle/min) | Filling |
PAS3000Ⅱ | 40-80 | 100-1000 piece |
