Features and characteristics:
Function:

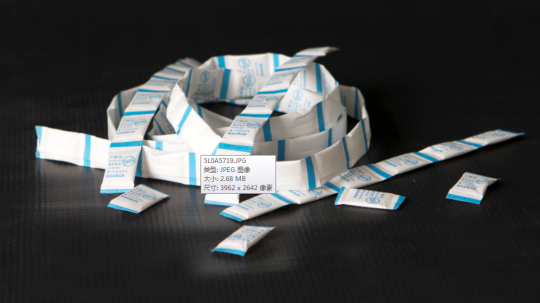

Reel packed desiccant can be automatically cut and inserted into bottle
Vertical feeding, color strip position. Empty bag not cut
Inserting quantity can be set accordingly
has the function of inserting confirmation, and automatic rejection function
3-level authorization management meets the machine operation management mechanism.
Parameter recipe can be stored and invoked function.
Machine has the function of electronic recording, electronic signature, audit trailing meeting FDA21 CFR PART11 requirements.
Machine will automatically stop when bottle shortage and restart when bottle in-fed.
Illustration:
Features:
Desiccant can be accurately positioned by its color strip or hole between bags, bag length can be intelligently detection ensuring desiccant bag will not be cut wrongly
Adopts servo motor driving system to intelligently control feeding length

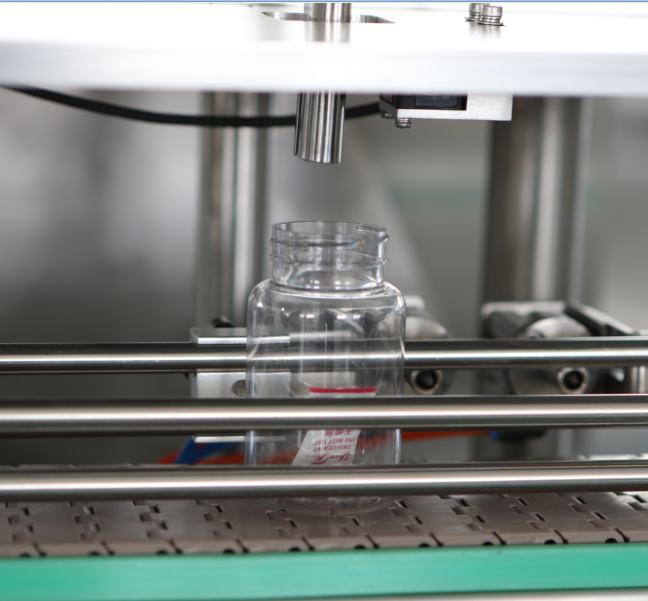

Machine has inspection system for broken desiccant and inserting status, which can effectively judge the qualified desiccant inserted
Machine has tension stability device to avoid damage and fracture of desiccant
With perfect anti-interference control system, it can resist the interference of electromagnetic interference (EMI), radio frequency interference (RFI), electromagnetic pulse (EMP) and other electronic systems
Adopt international famous brand PLC and touch screen control system
Adopt antistatic design
Low noise and no vibration interference
Illustration:
Quality risk control:
equipment has a stable feeding device to ensure the feeding process will not cause damage to the desiccant
machine will alarm once bottle pass without desiccant inserted and rejected automatically, machine will alarm once desiccant is to be used out
equipment can display real-time running time, product name, batch number, operator, equipment running parameters, can automatically count the output of qualified and unqualified products and a series of running data, data can be stored, uploaded, or external printer printing.
equipment operation process meet the requirements of GMP, FDA and other regulations
machine has inspection function for empty desiccant and broken desiccant, which can effectively judge whether qualified desiccant inserted into bottle.
Illustration :
Safety alarm device:
3-color alarm light has intelligent voice and visual warning function, which is helpful to optimize personnel allocation and improve work efficiency
Safety door interlocking shutdown alarm device to ensure the personal safety of operators
Machine has automatic inspecting function of bottle shortage and blocking
Simple operation, faster to change mold
user-friendly man-machine interface is easy to understand
Adopt modularization and tool-free design, simple and quick to change specifications by changing the corresponding mold,
Administration personal can invoke the stored recipes and quickly switch between different products
Easy maintenance and cleaning
convenient to disassemble and clean the equipment, tool-free design, convenient to install again by positioning design.
equipment surface is made of stainless steel and non-toxic and chemically stable food grade non-metallic material, easy to clean and has no dead angle.
Enjoy the Internet convenience in internet age
Ethernet data interface and OPC mechanism can be optioned, convenient user to access SCADA/MES system
Internet access and backup database, etc
Remote network maintenance can be realized
Make the most use of the Internet
Partial customer list:
Illustration:
Technical parameters:
Type | Suitable to bottle size | Capacity (pcs/min)
|
PH3000I | 20~300 ml | 50~80 |
PH3000II | 20~300 ml | 80~120 |
