Features and characteristics:
Function:

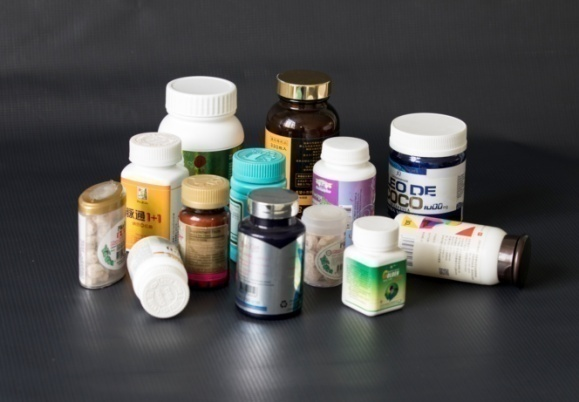

Only suitable to round bottle labeling, production date, expiration date, batch number and other content can be printed on the label
Intelligently record label length, no need set manually
remain label quantity can be set and remind
Machine has the function of electronic recording, electronic signature, audit trailing meeting FDA21 CFR PART11 requirements.
Parameter recipe can be stored and invoked function.
3-level authorization management, meeting the device operation management mechanism.
Monitoring code assigning system (ink-jet printing & laser printing) and code reading system( one dimensional bar code, two dimensional bar code) can be optioned
label without printing, bottle without label can be rejected automatically
inspection function of printing definition and print contents checking can be optioned

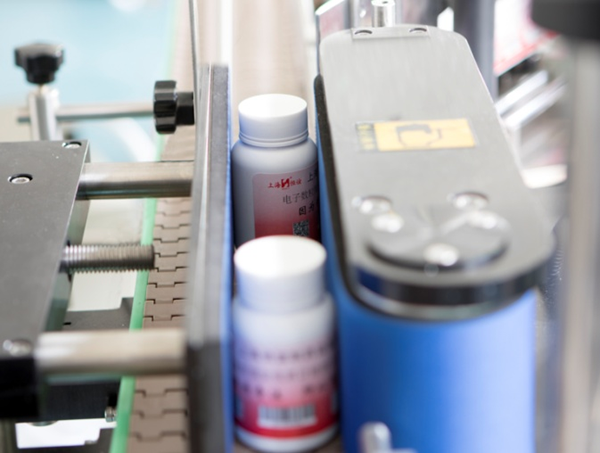

Illustration:
Features:
special high speed and stable label out-feeding control system to ensure the label sticking accuracy
label without printing, bottle without label can be rejected automatically
machine has alarm system for color belt run out or color belt breaking
machine has intelligent temperature controlling system of color belt to ensure printing quality
easy and fast to change printing pin
With perfect anti-interference control system, it can resist the interference of electromagnetic interference (EMI), radio frequency interference (RFI), electromagnetic pulse (EMP) and other electronic systems
Adopt international famous brand PLC and touch screen control system
Machine can be matched and be used with bottle packing line
Illustration:
Quality risk control:
equipment can make production process better to meet the requirements of GMP, FDA and other regulations
equipment can display real-time running time, product name, batch number, operator, equipment running parameters, can automatically count the output of qualified and unqualified products and a series of running data, data can be stored, uploaded, or external printer printing.
rejection mechanism has a real-time monitoring and confirmation system to ensure the unqualified products are accurately rejected.
Safety alarm device:
3-color alarm light has intelligent voice and visual warning function, which is helpful to optimize personnel allocation and improve work efficiency
Safety door interlocking shutdown alarm device to ensure the personal safety of operators
Simple operation, faster to change mold
user-friendly man-machine interface is easy to understand
Administration personal can invoke the stored recipes and quickly switch between different products
Easy maintenance and cleaning
convenient to disassemble and clean the equipment, tool-free design, convenient to install again by positioning design.
Machine surface is made of stainless steel and non-toxic, chemically stable food grade non-metallic material, easy to clean, no dead Angle.
Enjoy the Internet convenience in internet age
Ethernet data interface and OPC mechanism can be optioned, convenient user to access SCADA/MES system
Internet access and backup database, etc
Remote network maintenance can be realized
Make the most use of the Internet
Illustration:
Technical parameters:
Type | Suitable to bottle size | Capacity (pcs/min)
|
PF2000II | 20~300 ml | 60~120 |
PF3000II | 20~300 ml | 120~200 |
